SuperFlux Female connector
Couldn't load pickup availability
Important:
Do not purchase this if you have purchased a complete Fungineers Controller Box. The box will include all connectors including this Superflux female connector.
Overview

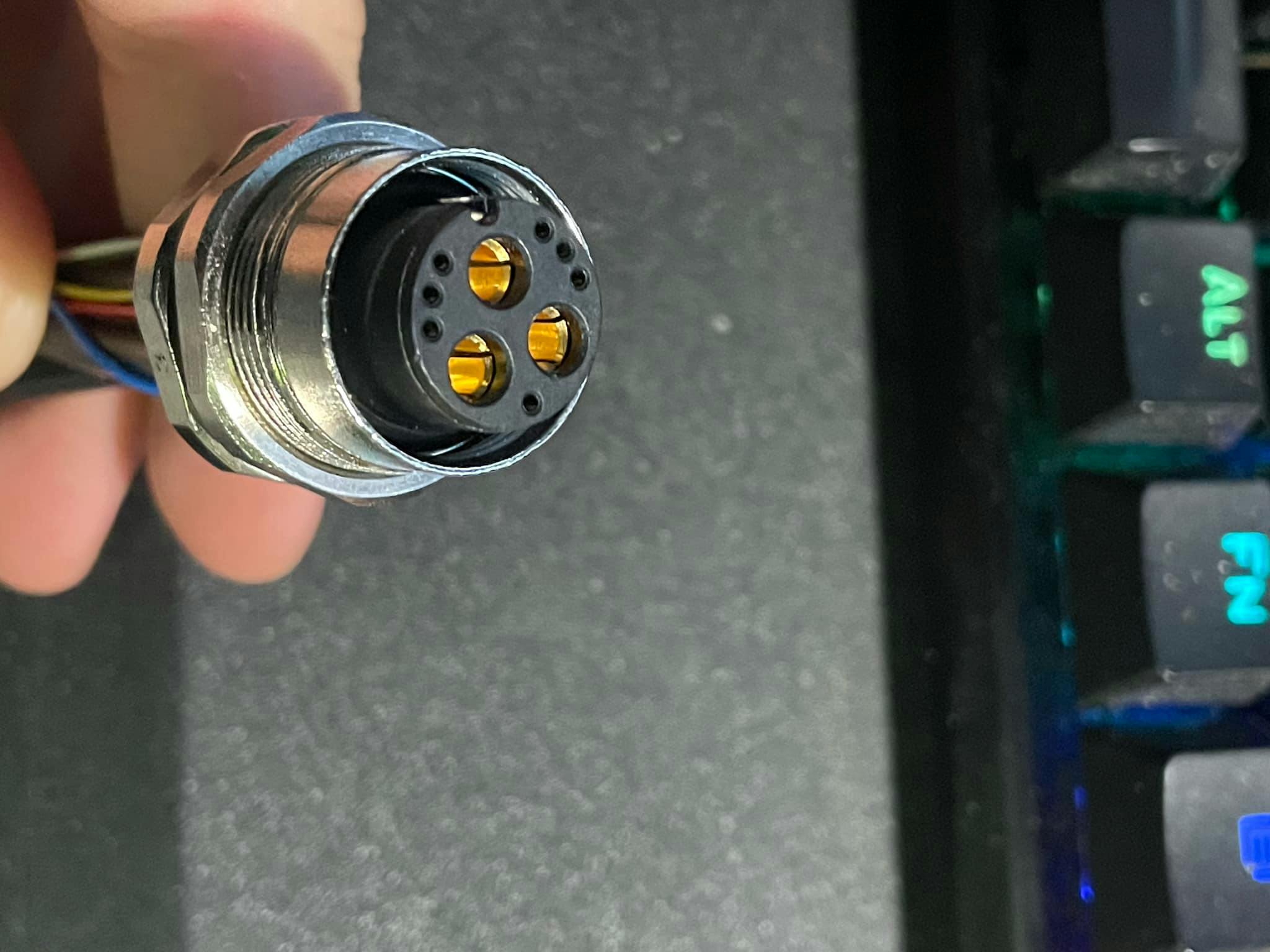

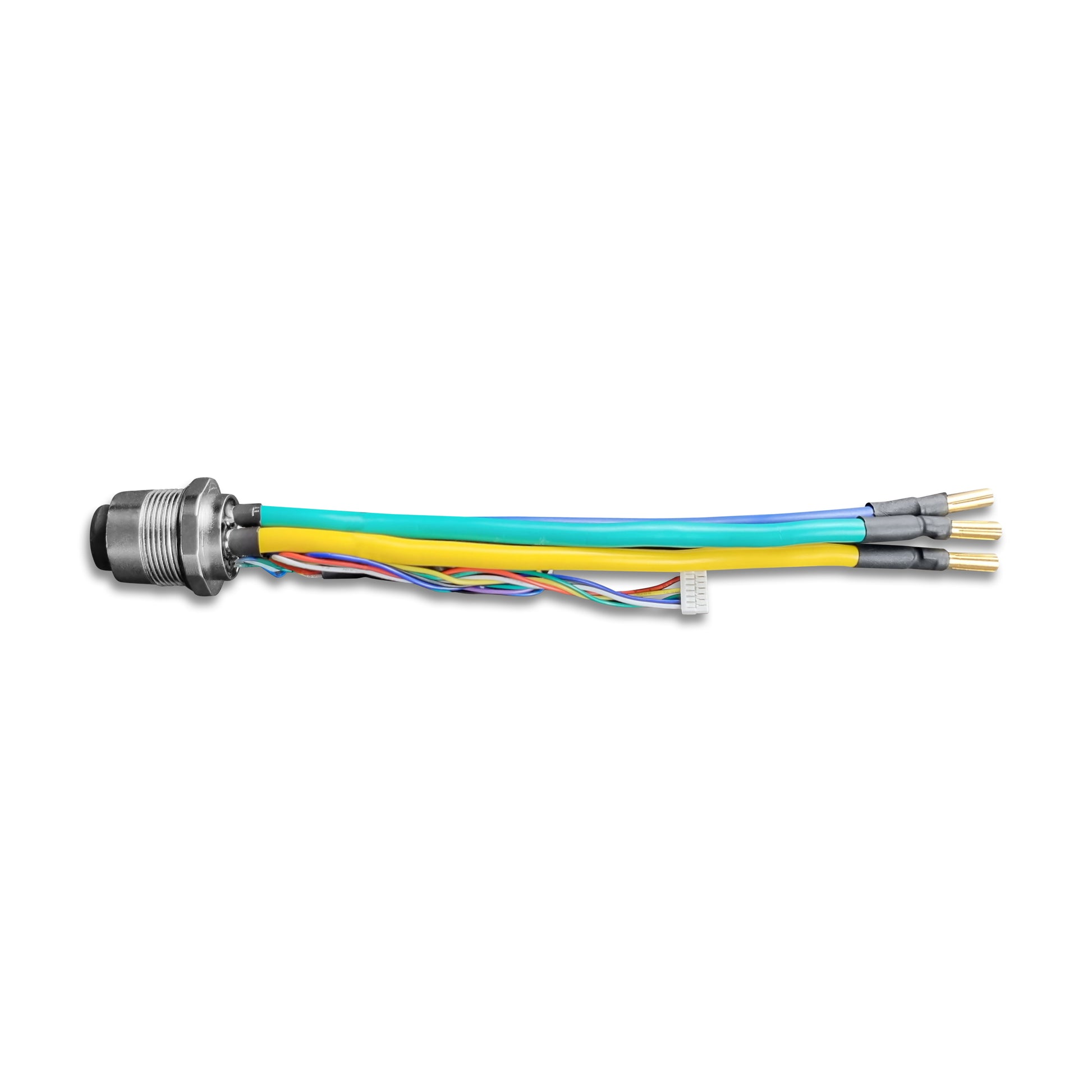

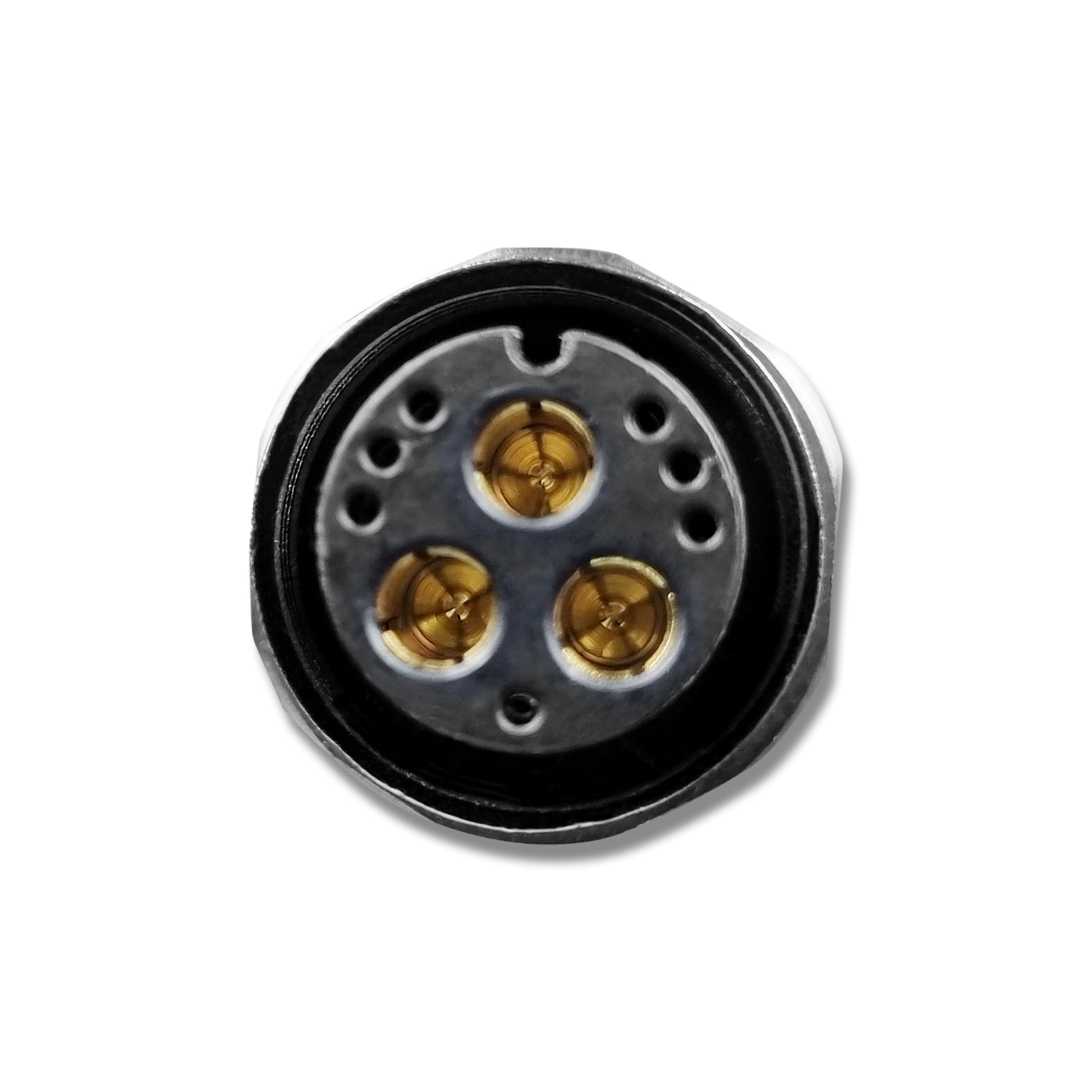

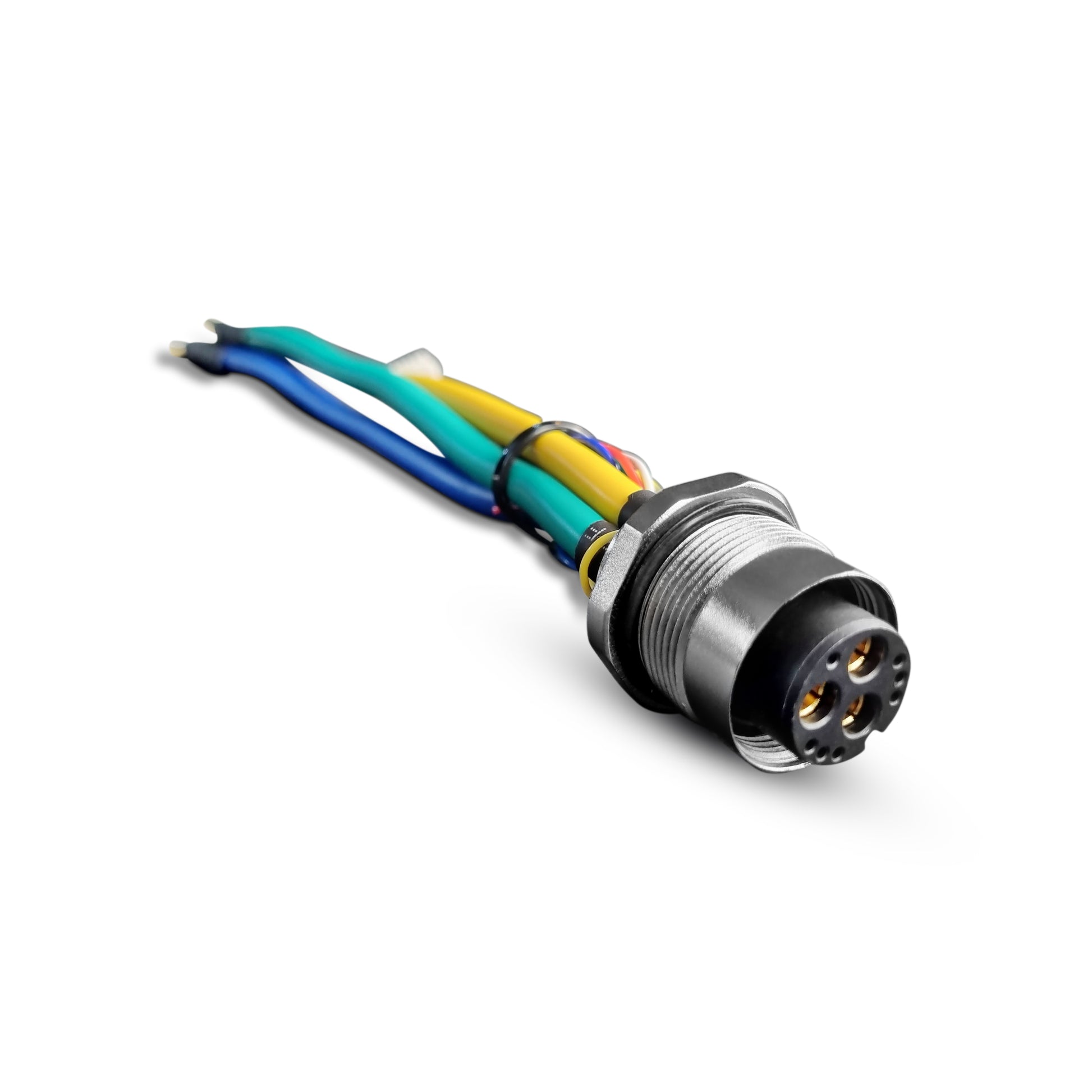

The Superflux Female Connector is the corresponding 9-pin connector for the Superflux motor. The Superflux motor ships with a 9-pin male connector designed for easy installation and tire swapping — this is the matching female connector that mounts to your controller box.

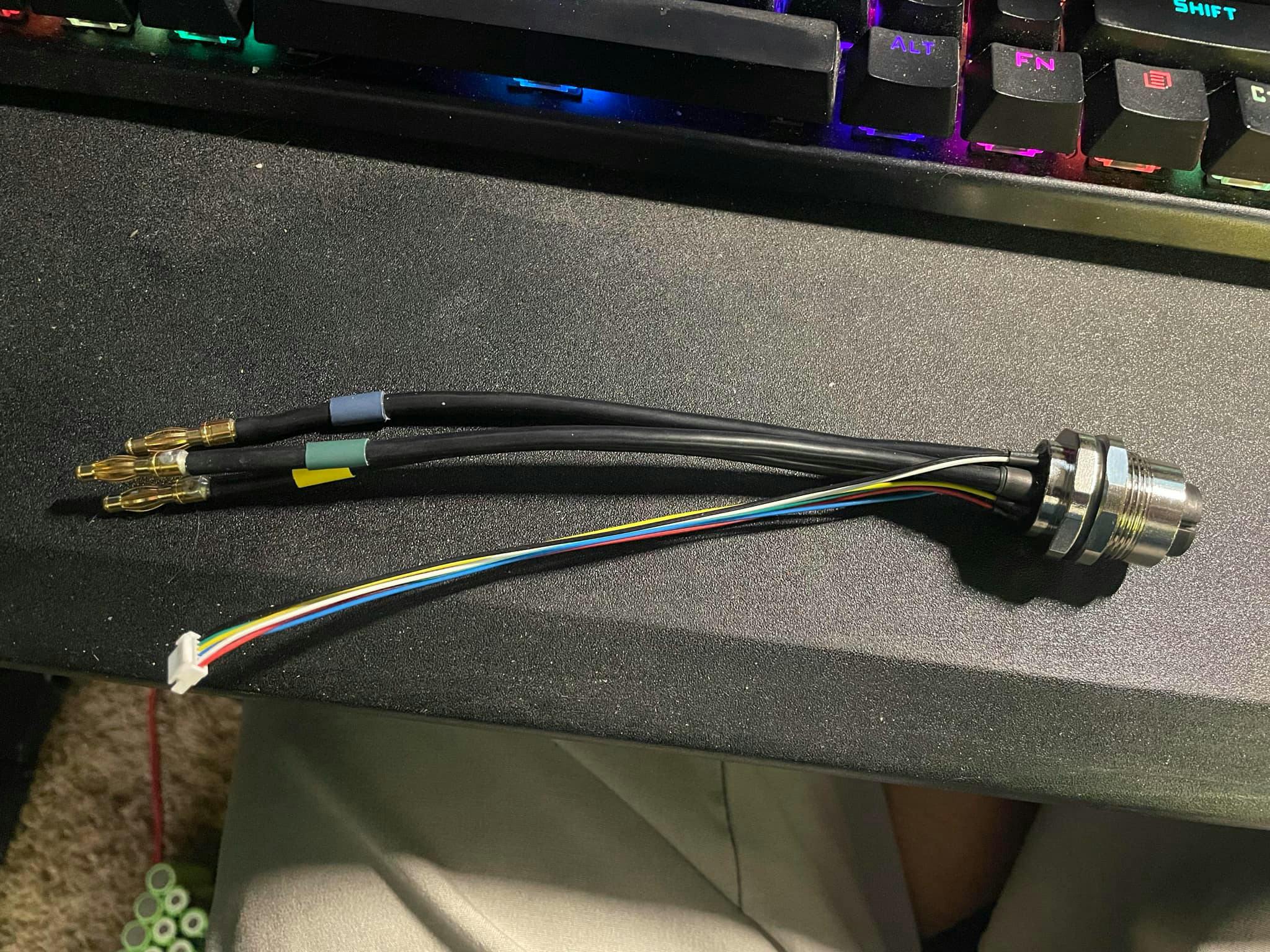

Includes:
- 3x 4mm banana connectors (male) compatible with most VESCs

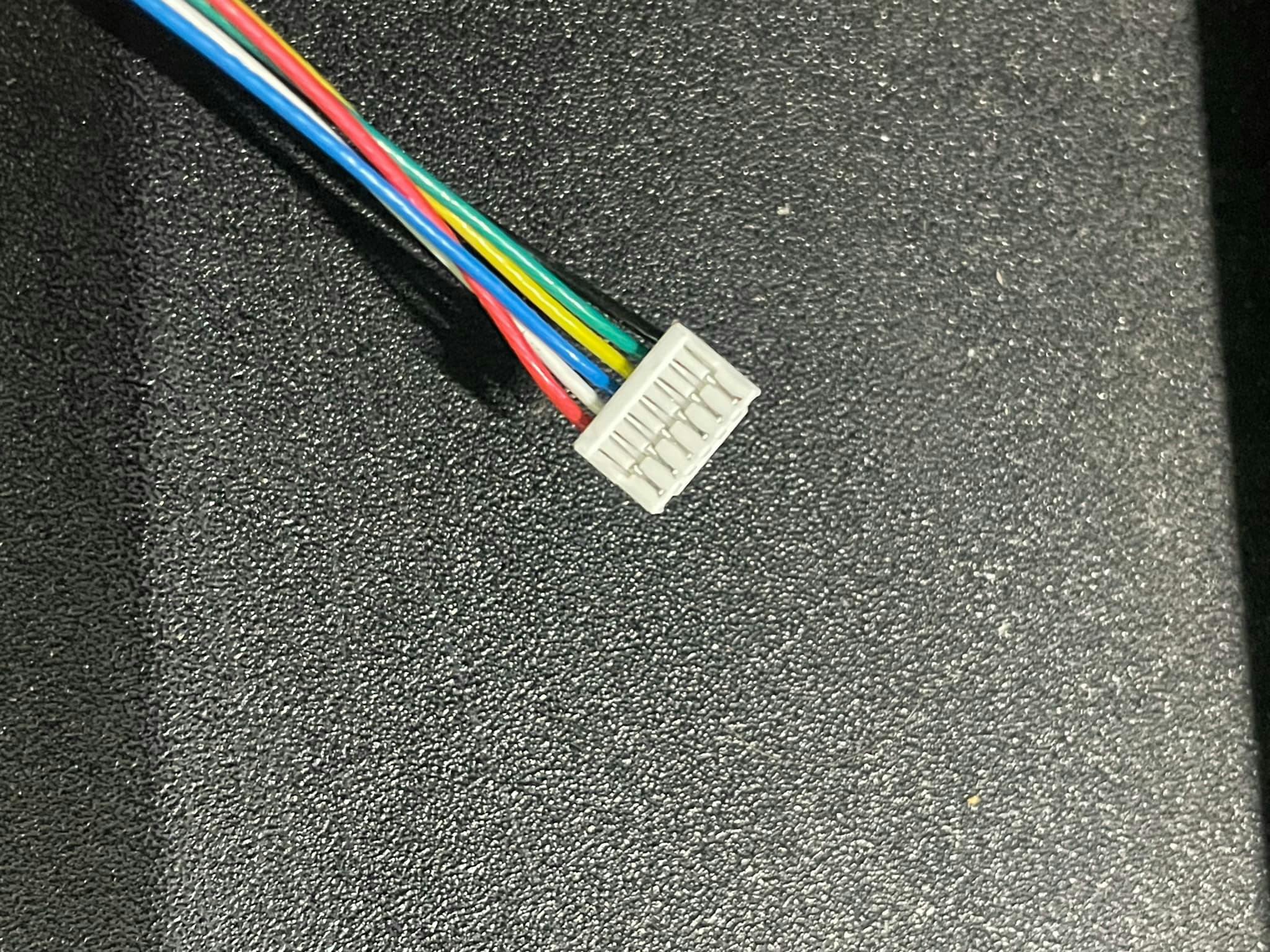

- 1x 6-pin JST GH 1.25mm connector compatible with most VESCs (Lil Focer users should contact their vendor for adapter options)
Rated for over 500V and 100A continuous current, with the largest pins in the industry for reliable high-current performance.
Details
The connector has an outer diameter of approximately 20mm, making it a direct fit for any box that previously used an M20 or PG13.5 cable gland — including the Fungineers Easy Access Box and the Fungineers Metal Box. It is also expected to be compatible with the Floatboxx, though we recommend confirming with Rob at Floatboxx directly, as future Floatboxx orders may ship with the female connector pre-installed.
Customer Reviews
Well packaged to protect the female connectors I ordered and quick shipping, thanks fungineers 🙏

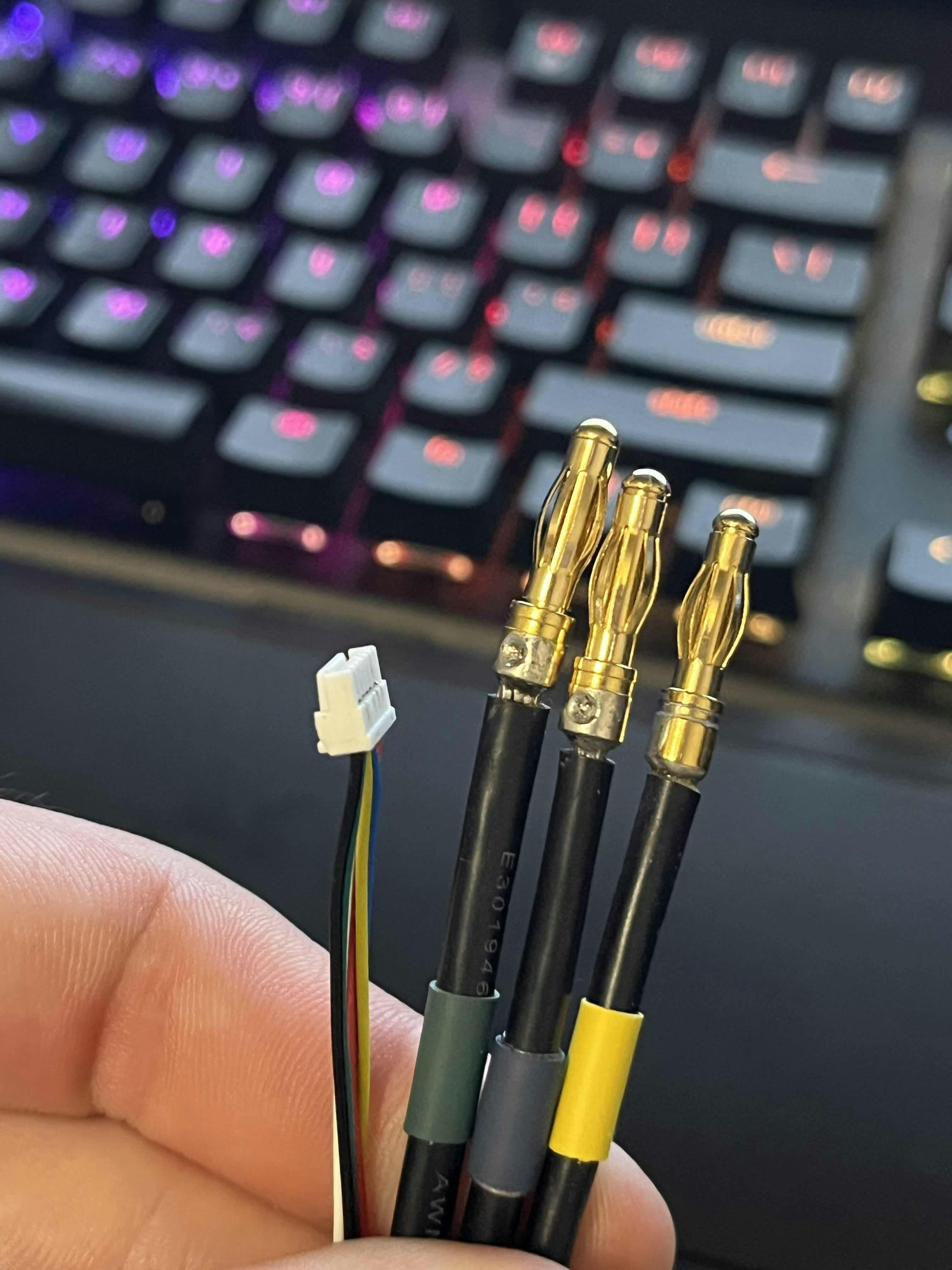

No other motor connector creates a solid connection that won’t come loose during rough riding on trails. Only complaint is banana connectors for the phase wires should be replaced with 4mm bullet connectors.

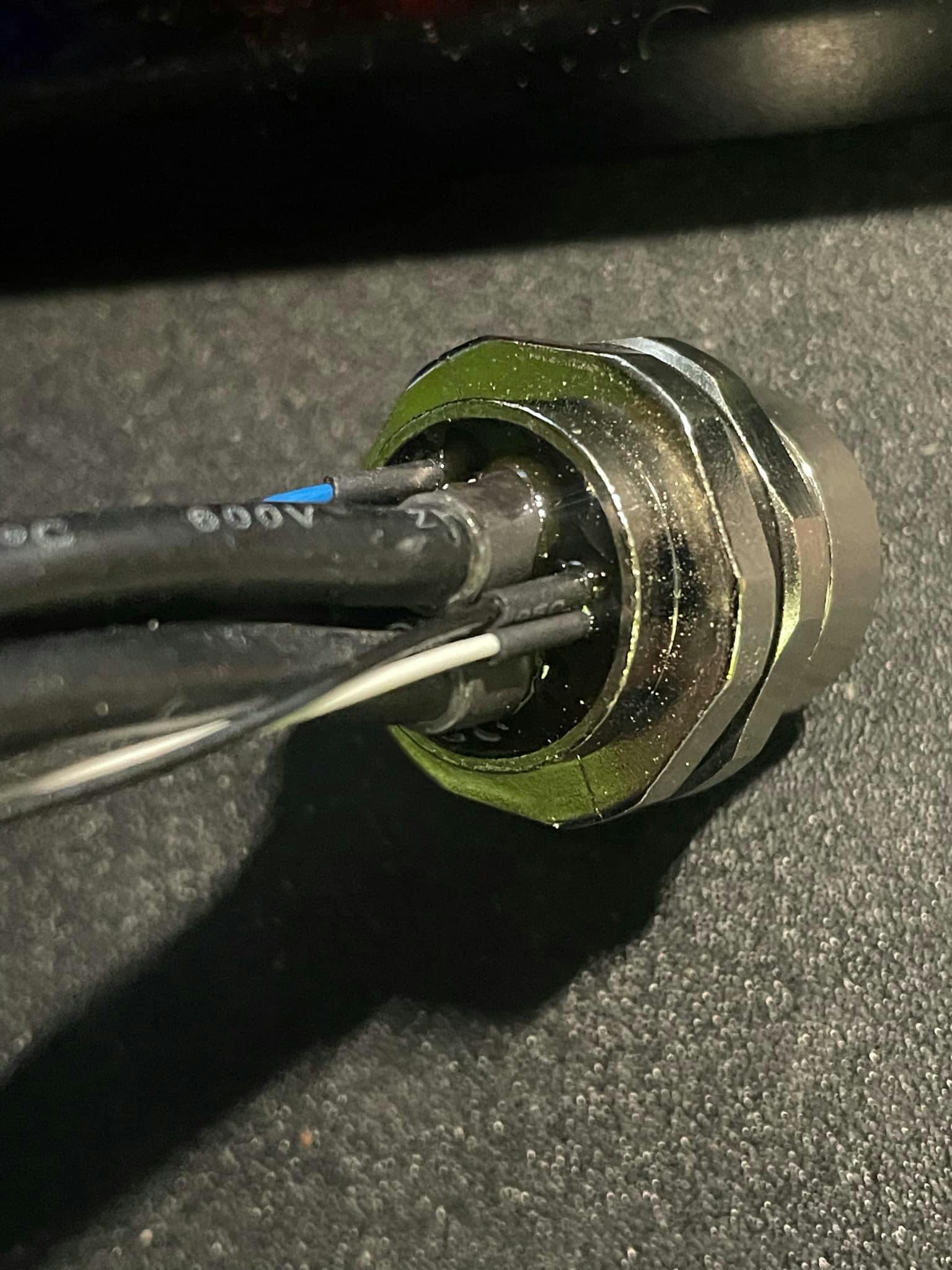

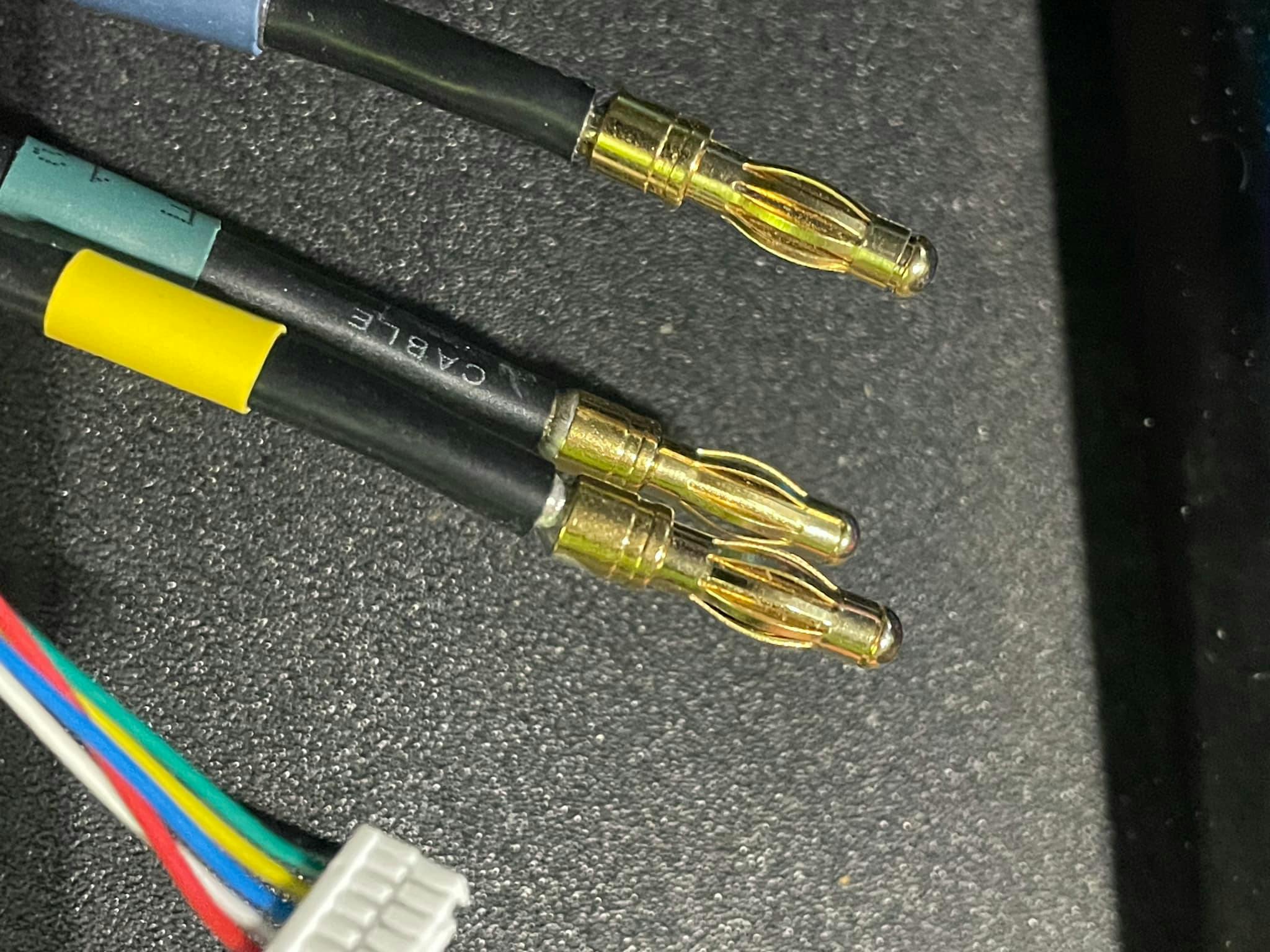

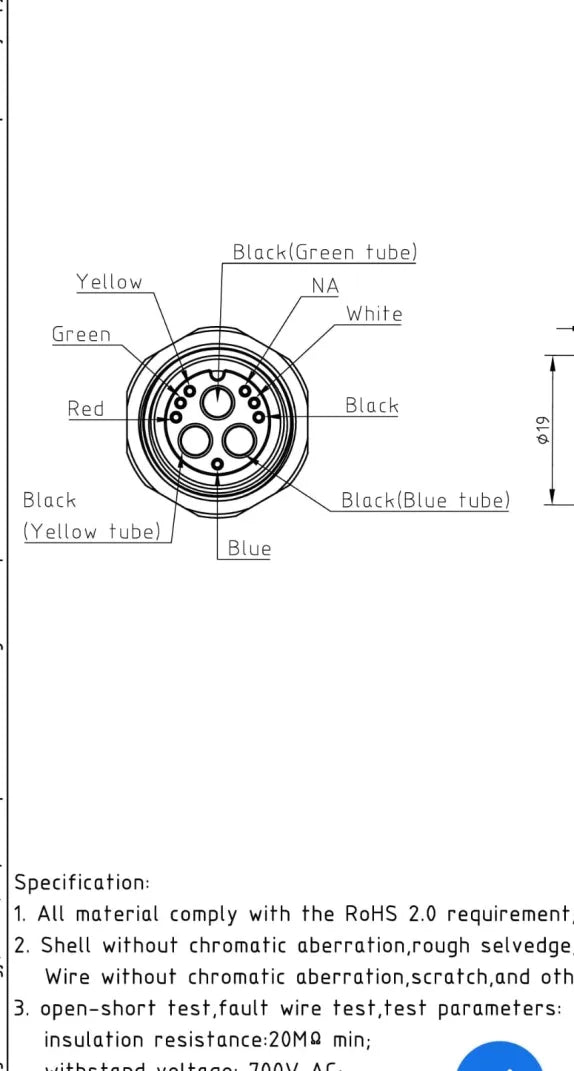

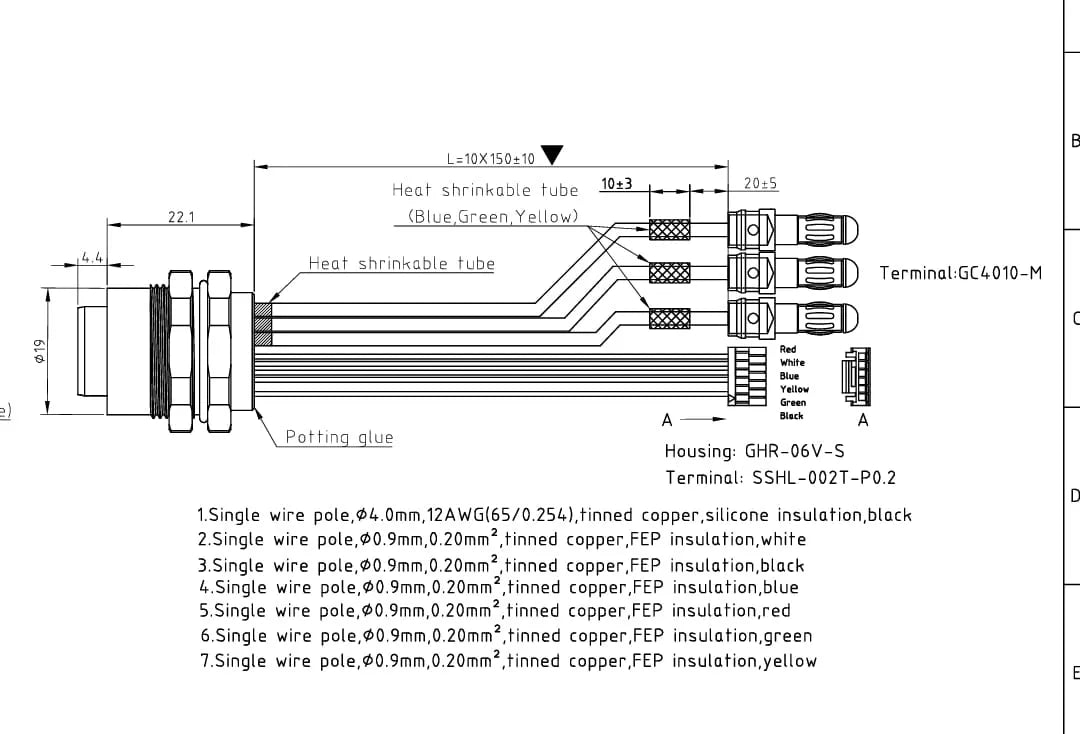

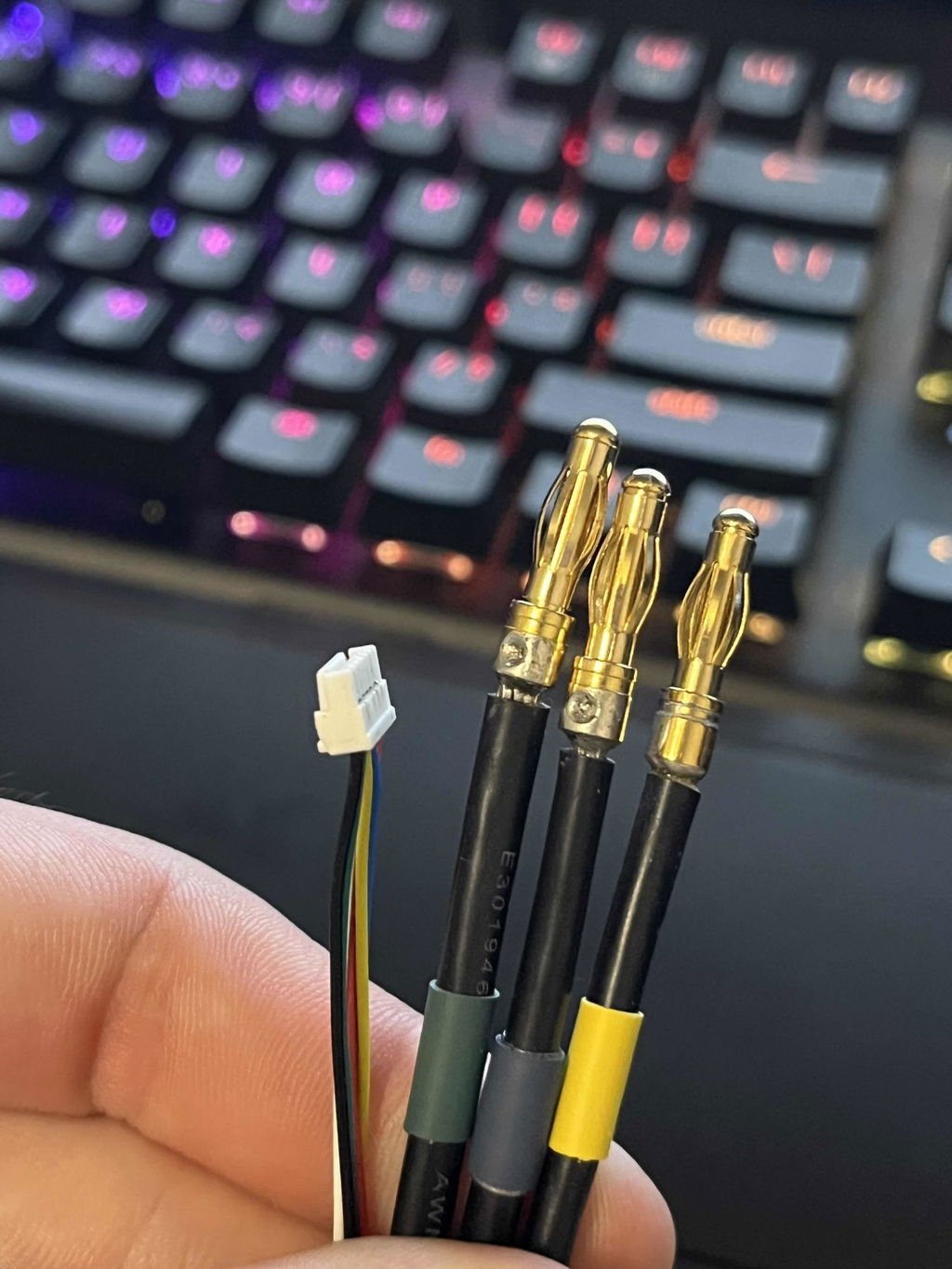

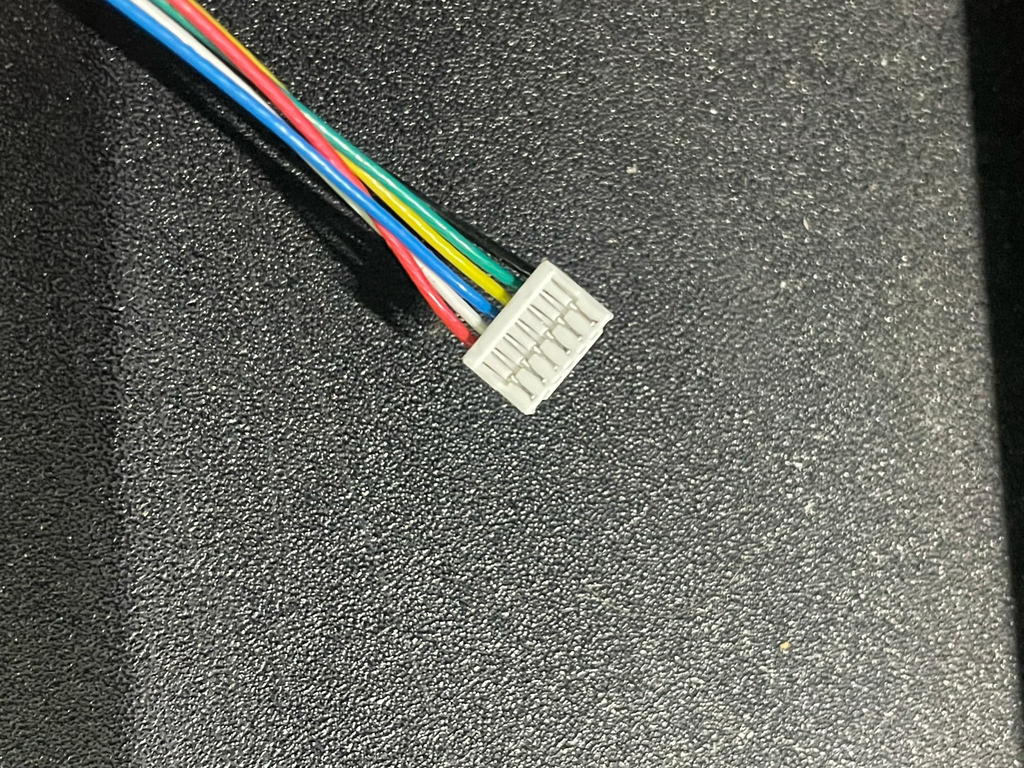

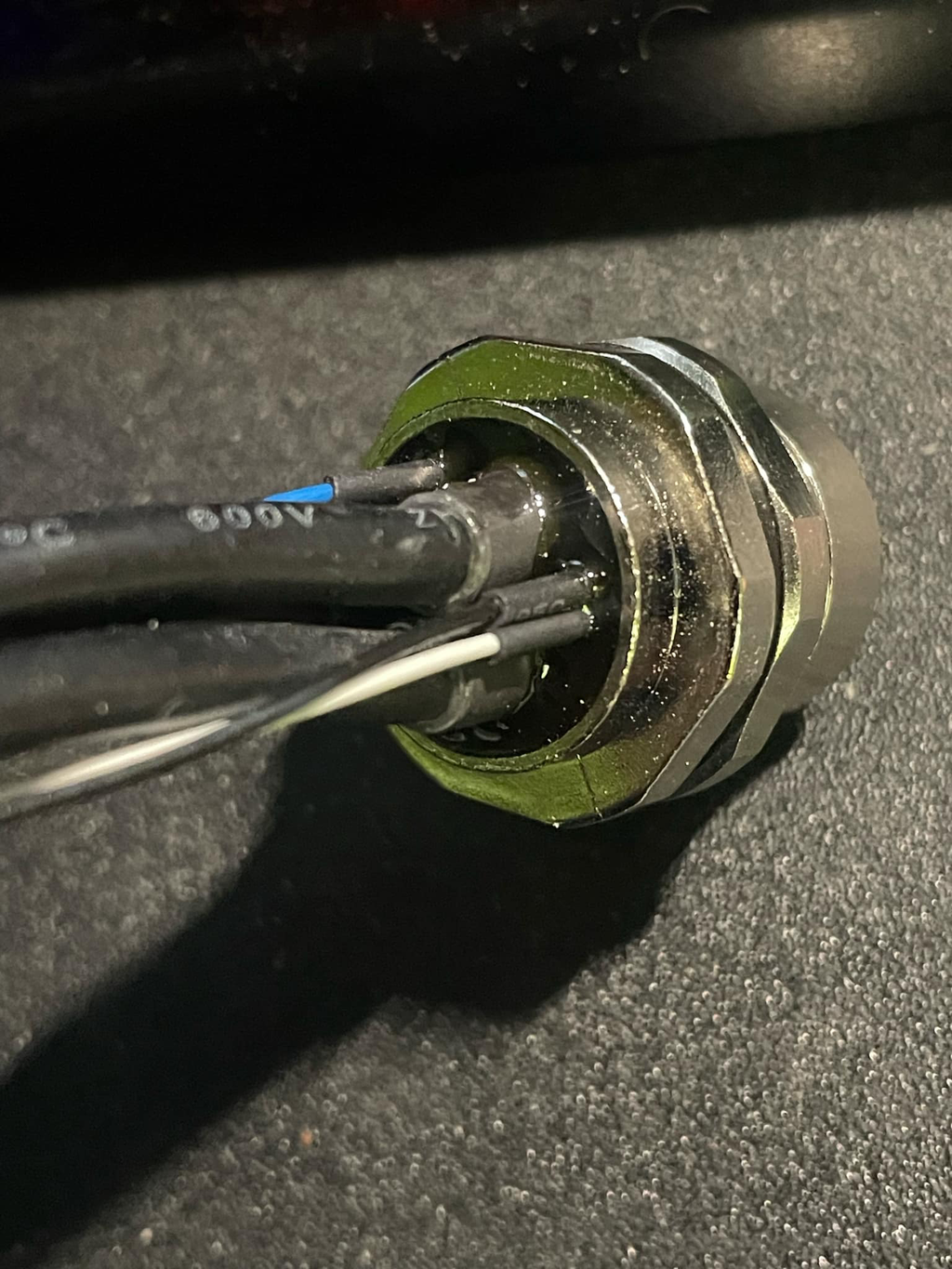

As much as I was initially against going back to a plug after being team cable gland this things is quite well made. The wires for the halls are a seemingly high quality wire as are the phase. The phase wires appear to have glue insulated heat shrink near the base as well as potting compound to further insulate everything. Like mentioned in the other review these are sporting the 4.0mm banana connectors as opposed to the 4.0mm bullets shown in the leading image. The final picture (technical drawing) appears to illustrate the banana plugs accurately to what shows up tho. I'm planning to swap mine to 5.5mm anyway but it would nice to have it show up more like the picture shows. Should also note that appears to ship separately from the rest of the order and somewhat slower so make sure you plan ahead for that. I think I received this about 4 business days after the SF hub. Not the end of the world as I'm not in any rush.

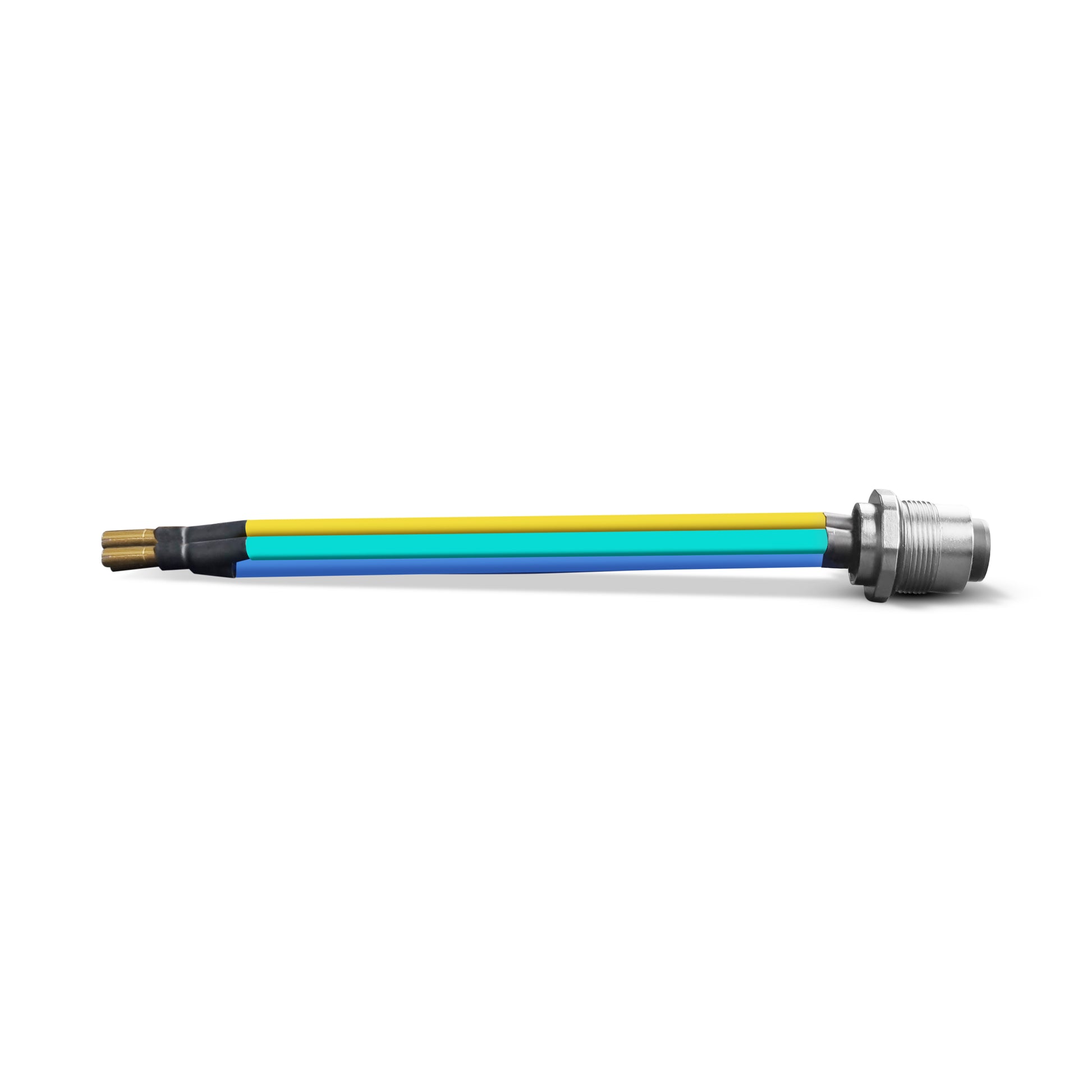

The bullets in the listing's pictures are not what arrive in the mail. This comes with banana style plugs which are prone to catastrophic failures without taking steps to mitigate their flaws. Update the pics or get the old bullets back on.
